Compatible PTZ

If your model is not listed, you can try a similar or close model.

If that doesn't work, contact Cyanview support.

BirdDog

• BirdDog P100

• BirdDog P200

• BirdDog P400

• BirdDog P4K

Canon

• CR-N300

• CR-N500

Panasonic:

AW-HE:

• AW-HE40

• AW-HE42

• AW-HE50

• AW-HE60

• AW-HE70

• AW-HE120

• AW-HE130

AW-UE:

• AW-UE70

• AW-UE100

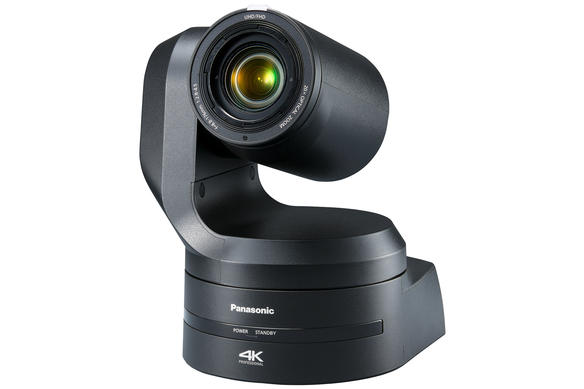

• AW-UE150

AW-HR:

AW-HR140 (use AW-HE130 model)

Sony

• ILME-FR7

• BRC-X1000

• BRC-X400

• BRC-H900

• BRC-H800

Controls

You can control:

• Exposure

• White balance

• Black balance

• Advance shading (multi matrix, etc.) based on camera compatibility

• Pan/Tilt/Zoom/Focus

For a more detailed list, check if your model has its own integration guide.

Wiring

Compatible Cyanview device: RCP, RIO, RIO Live

If the RCP/RIO doesn't have an IP address in the same range as the camera IP, you should add one in the LAN section by following this guide.

Pan/Tilt

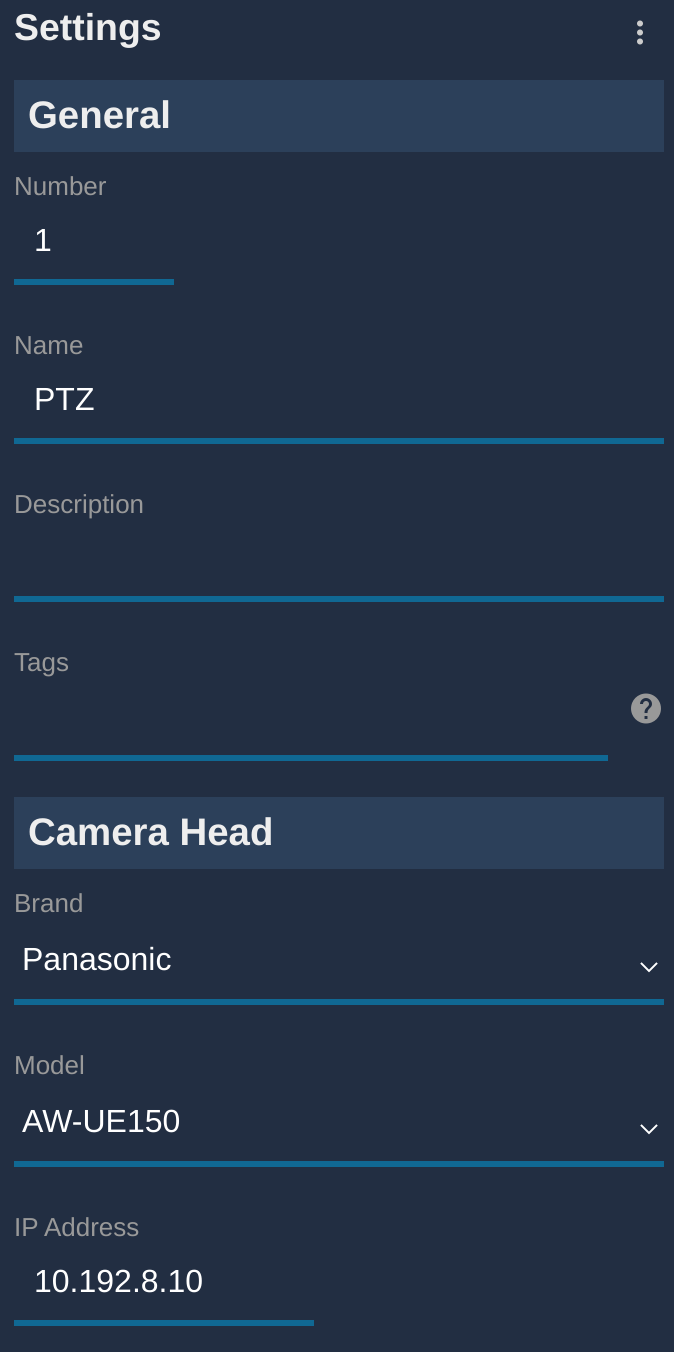

Once the camera is configured, you can have:

• Cyanview RCP (shading) and Sony joystick panel ( rm-ip500)

• Cyanview RCP (shading + pan/tilt/zoom/focus) from touchscreen, more information here

• Cyanview RCP (shading + pan/tilt/zoom/focus) from USB joystick, more information here

Remote control / Remote production

Even if the PTZ control is IP, it can be interesting to combine a PTZ with a RIO (with AVIWEST for example).

Or combine local shading with RCP with remote shading from anywhere in the world using a second RCP.

For more information, take a look at REMI page
